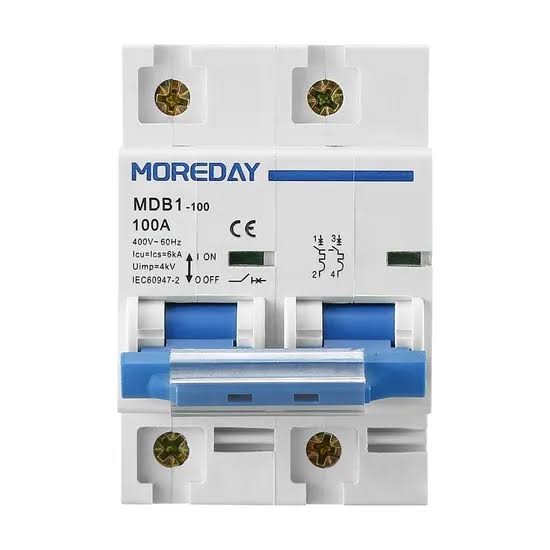

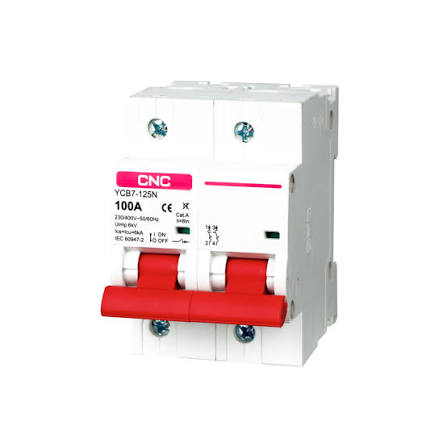

MCB AC 2P 100A
A 100A 2-Pole AC Miniature Circuit Breaker (MCB) is designed to protect single-phase AC circuits from overloads and short circuits. It is commonly used as a main isolator or for high-current single-phase loads.
Typical specifications:
Rated current: 100A
Poles: 2P (Double Pole)
Rated voltage: 230/400V AC, 50/60Hz
Breaking capacity: Typically 6kA, 10kA, or higher depending on the model
Mounting: 35mm DIN rail
Trip curve: Usually C Curve for general commercial and industrial applications
Standards: IEC/EN 60898-1 and IEC/EN 60947-2
